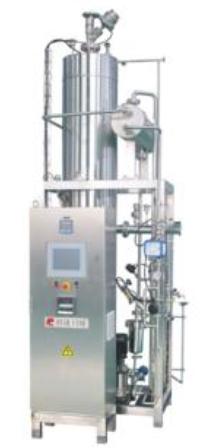

Clean Steam Generator
Production capacity
The standard equipment model table shows the equipment production capacity under the condition of 3 bar pure steam pressure and 6 bar industrial steam with the unit in kg/h The actual production capacity of same type equipments shall be acquired in accordance with the actual operation pressure and use this actual operation pressure to multiply the conversion coefficient in the specified production capacity.
Model selection example
industrial steam pressure: 7bar
Pure steam pressure needed: 2bar
The highest demand of pure steam 500kg/h
Conversion coefficient: 1.7
Specified output needs 500/1.7=294 kg/h
Model selected: PSG 300 DT5
