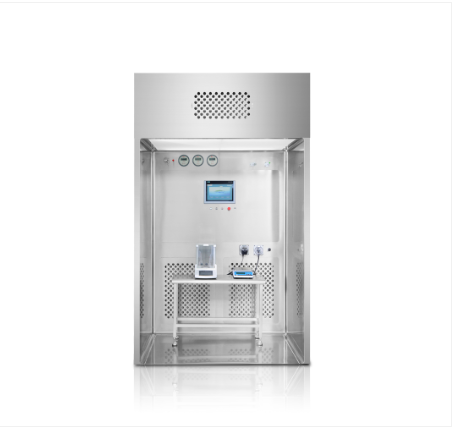

Weighing Booth
Weight booth is used for weighing of raw materials. It is provided with HEPA filter. This unit eliminates dust contamination to protect the operator and the surrounding environment. It is widely used in pharmaceutical industry.
Product advantages:
1. The integrated arc design of the workspace has no dead corners, no dust accumulation, and is easy to clean.
2. Wind curtain isolation, convenient entry and exit of personnel and materials, convenient operation, and no hygiene blind spots.
3. The patented design of differential pressure balance ensures that the pressure difference in the background area remains unchanged.
4. Good unidirectional flow pattern, non diffusion of dust, and good dust capture effect.
6. A cooling unit can be added to ensure that the temperature during equipment operation is within the control range.
7. By combining the company's testing methods, the filter level can be reasonably selected.
8. Integrate weighing equipment control into this equipment according to customer needs.
9. The isolation methods include wind curtain isolation, soft curtain isolation, and organic glass isolation.
10. The return air orifice plate is fixed with strong magnetic force, making it easy to disassemble and assemble.

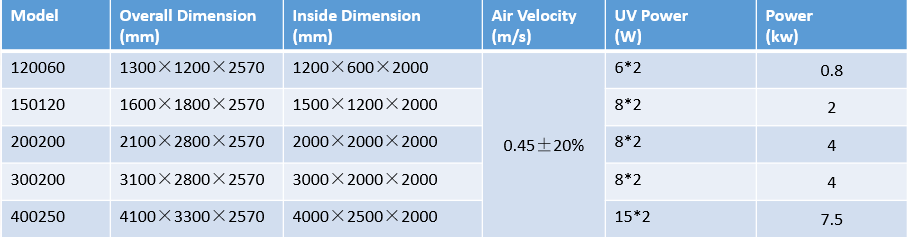

Technical indicators:
The airflow velocity is 0.45m/s ± 20%.
Equipped with control system.
Wind speed sensors and temperature and humidity sensors are optional.
The high-efficiency fan module provides clean laminar air (measured with 0.3 µ m particles) to meet cleanroom requirements with an efficiency of up to 99.995%.
Filter module:
Primary filter - plate filter G4;
Medium efficiency filter - bag filter F8;
High efficiency filter - liquid tank high efficiency non partition filter H14.
380V power supply.
